Large Capacitor Bank Project


Introduction
Theory Components Methods Experiments Outlook
Introduction Capacitor Bank Theory High Voltage Components Pulsed Power Methods Pulsed Power Experiments Project Outlook



These pages describe Pulsed Power Experiments in a new order of magnitude compared with the old experiments:

In our team a mechatronic technician, two physicists and a computer scientist work together in our laboratory.
We have got around 4 tons of high energy storage capacitors to our disposal.

Capacitor Bank Data:
- storage energy: 40.000 Joules

- max. Voltage rating: 12.000 Volts
- capacitance: 560uF

- pulsed power peak: 500 MW

Future experiments will include high speed electromagnetic acceleration and forming experiments, pulsed plasma experiments, under water shock wave generation for material machining.

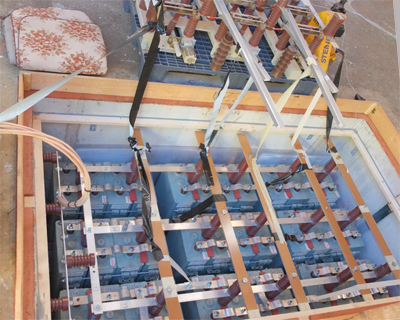

Large Capacitor Bank
