Large Capacitor Bank Project
Photos

Max Bigelmayr, Dez. 2025 (V01)

The large capacitor bank project consists of a variety of parts and assemblies. Since a detailed description of each component would far exceed the scope of this website, only a few photos are presented here.

Large Capacitor Bank Top View Large Capacitor Bank Top View 2

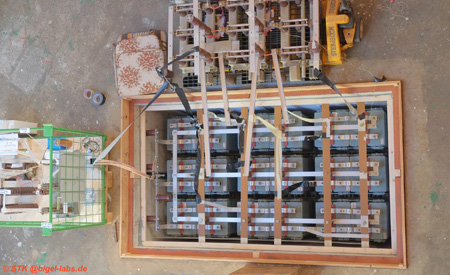

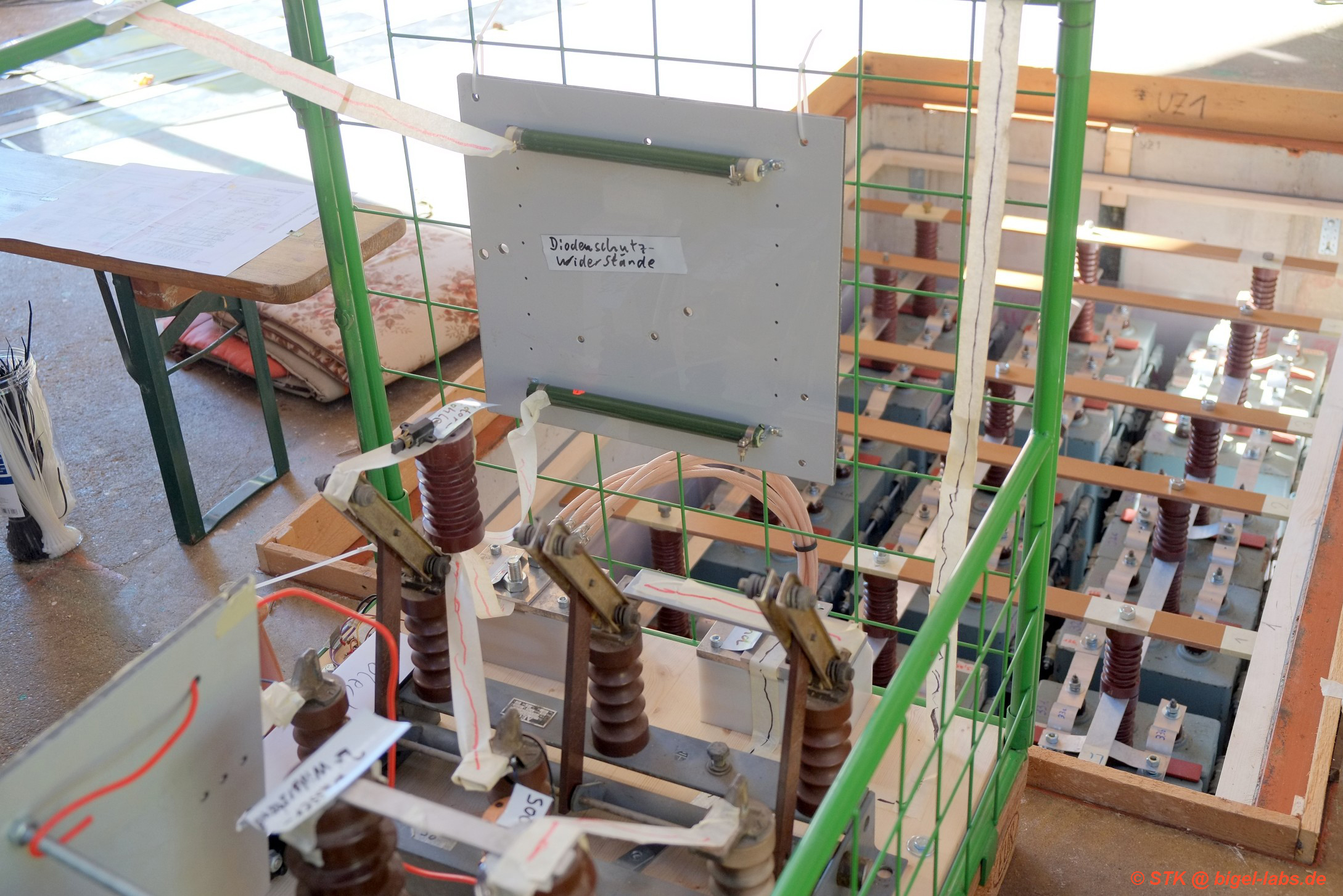

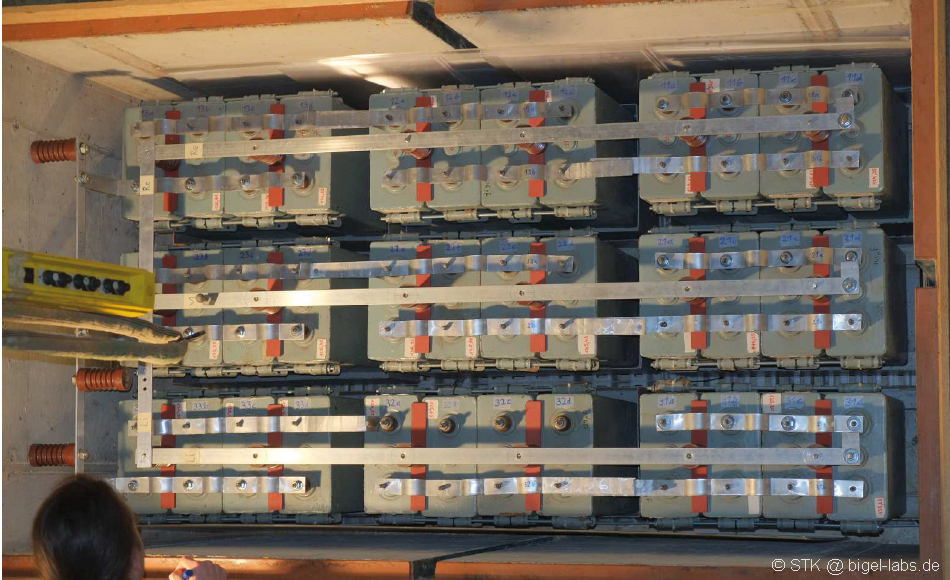

Fig. 1: Large Capacitor Bank top view Fig. 2: Large Capacitor Bank with High Voltage Switches
Large Capacitor Bank 3

Discharge Stillage

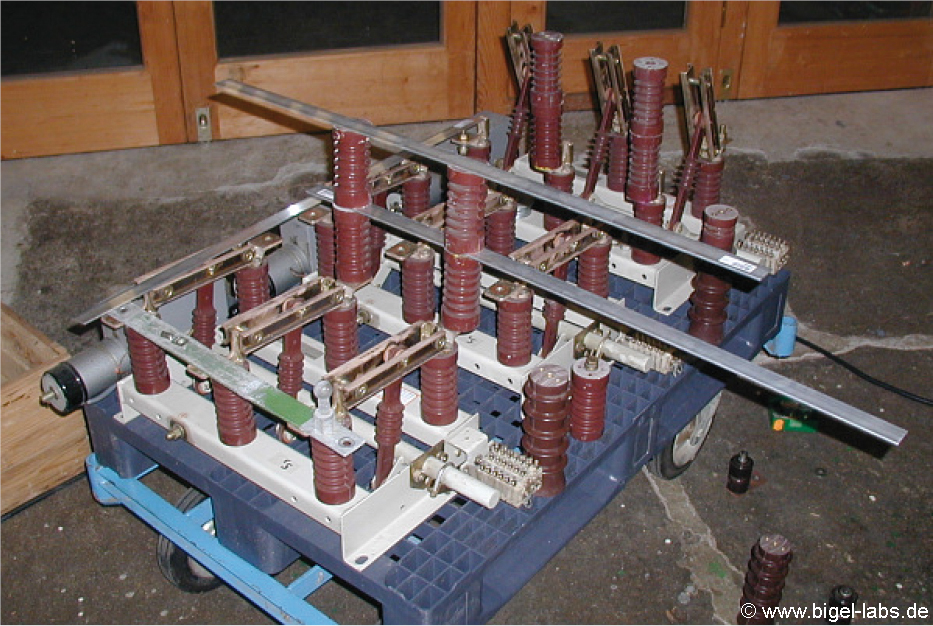

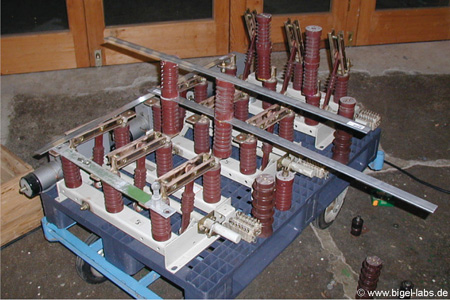

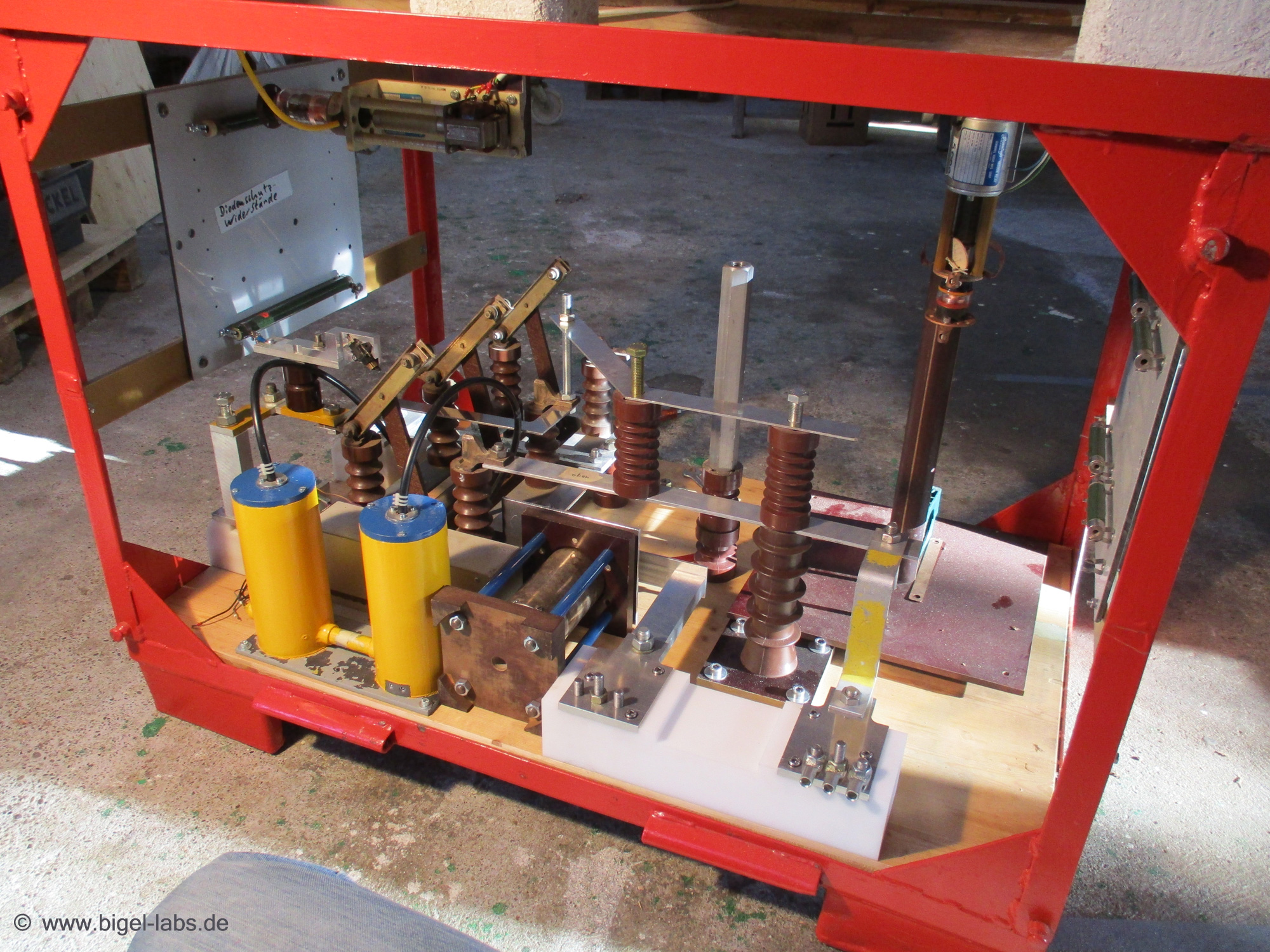

Fig. 3: High Voltage Switching Devices and Bleeding Resistors Fig. 4: Discharge Distallage including Measurement Equipment
Kondensatorbank Netzteil

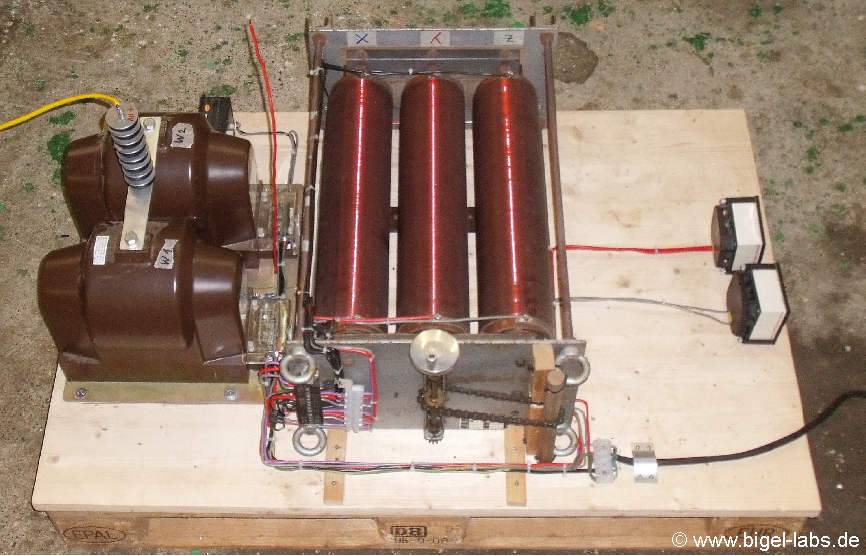

Fig. 5: High Voltage Transformers and 3 Phase Variac Fig. 6: Safety Discharge Switches
Water Resistor Copper Sulfate

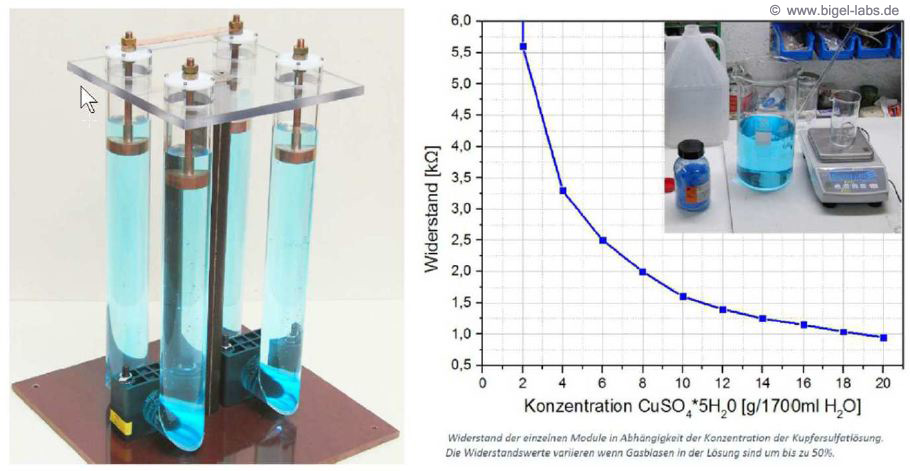

Fig. 7: High Voltage Water Resistor (filled with copper sulfat solution)
Discharge Chamber Capacitor Bank

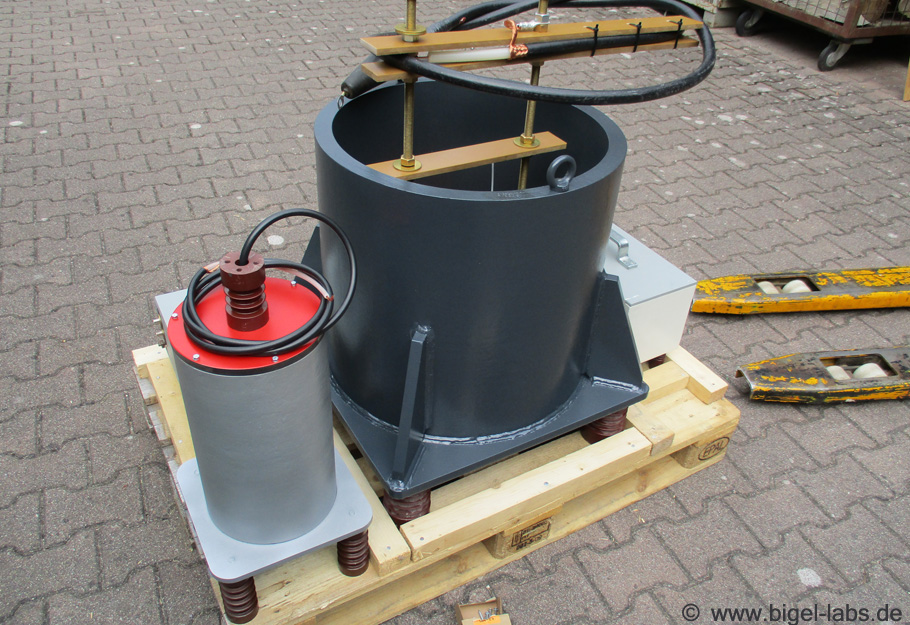

Fig. 8: Discharge Chamber and High Voltage Divider for Pulsed Wire Discharges powered by the Large Capacitor Bank
